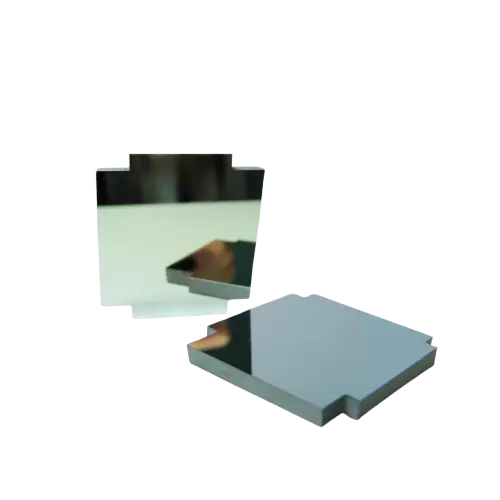

Name: 誘電体ミラー
Rating: 4.5 (100 reviews)

主な特徴

High reflectivity and low loss

These are its core advantages. At specific wavelengths (e.g., 532 nm, 1064 nm, 1550 nm), its reflectivity can easily exceed 99.9%, with absorption loss of less than 0.01%.
High laser damage threshold

Due to its extremely low absorption, it generates almost no heat, thus capable of withstanding extremely high laser power densities. This makes it a core component for beam steering and focusing in high-power laser cutting, welding, and marking systems.
Design flexibility

By adjusting the thickness and material of the coating, dielectric mirrors can be precisely designed to operate for specific wavelengths (narrowband) or specific bands (broadband).
Polarization sensitivity

It is sensitive to the polarization state of light, especially under non-normal incidence. The reflectivity of S-rays and P-rays differs, a point that requires special attention in precision optical design.

仕様誘電体ミラー

構造	平面、球形、円筒形、またはカスタマイズされた形状
基板	フューズドシリカ/シリカ/BK7ガラス
寸法	2mm～100mm
クリアな絞り	寸法の90%以上
表面品質	40/20、20/10 スクラッチディグ
表面の凹凸	λ/2～λ/10 @632.nm
厚さ	1mm～20mm
コーティング	UV/VIS誘電体コーティング

代表的な応用分野

Laser Resonant Cavities

Dielectric mirrors serve as high-reflectivity mirrors (end mirrors) and output mirrors in laser resonant cavities. All types of lasers, including helium-neon lasers, solid-state lasers (such as Nd:YAG), fiber lasers, and semiconductor lasers, use dielectric mirrors to create oscillations.
High-Power Laser Processing

Dielectric mirrors are used for directing, focusing, and expanding high-power laser beams. Their extremely low absorption loss means they generate almost no heat, allowing them to withstand continuous laser power in the kilowatt and even megawatt ranges without thermal lensing or damage.
Optical Communication and Fiber Optic Sensing

Optical communication requires the precise separation or combination of signals of different wavelengths (e.g.1550nm). Examples: optical modules in data centers and backbone networks, and auxiliary components of fiber Bragg gratings.
Precision Measurement and Scientific Research

Constructing precision optical cavities such as Fabry-Perot interferometers, gravitational wave detectors, and optical clocks. These applications require light to reflect back and forth between two highly reflective mirrors tens of thousands of times, demanding reflectivity of 99.999% or even 99.9999% (loss on the order of ppm). Only ultra-low-loss super dielectric mirrors can meet this requirement.
AR/VR

Augmented Reality/Virtual Reality (AR/VR) headsets, miniature projectors, and 3D scanners.

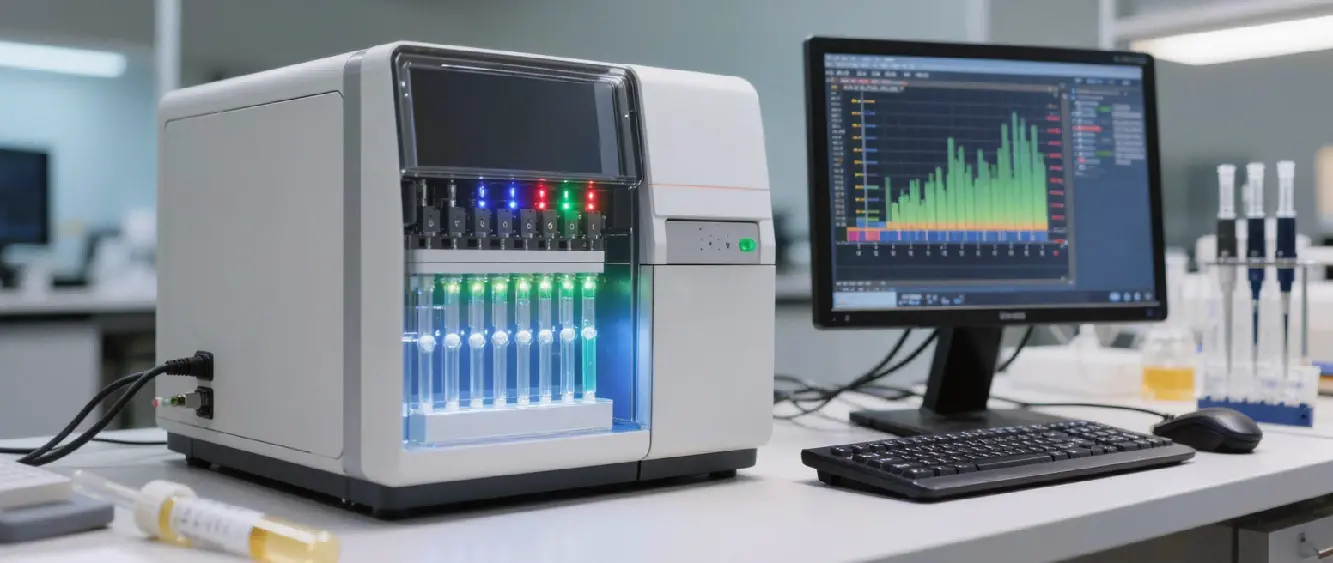

Spectroscopy and Biomedicine

Core role: Laser filtering and beam manipulation in Raman spectrometers and flow cytometers. Specific examples: Optical systems in confocal microscopes and gene sequencers.
