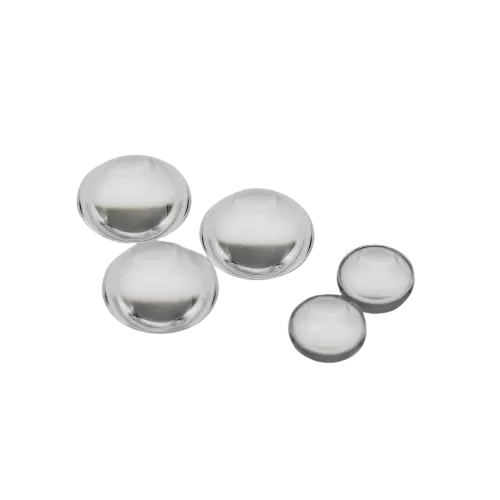

精密研磨非球面レンズ
精密研磨非球面レンズ
精密研磨非球面レンズ
精密研磨非球面レンズ
非球面レンズ

精密研磨非球面レンズ

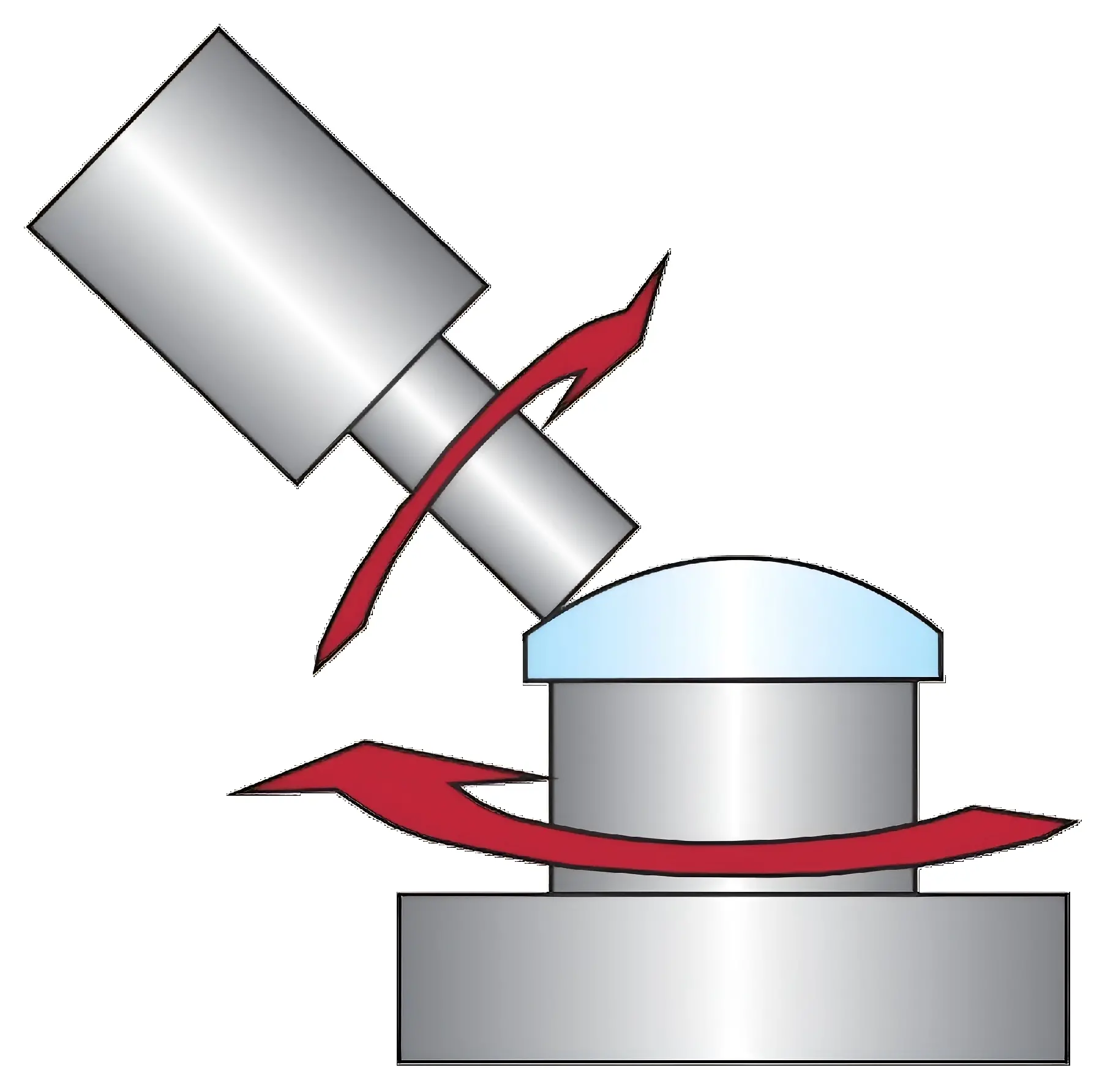

精密研磨非球面レンズは、CNC研磨などの超精密加工技術を用いてガラス素材から直接材料を除去し、非球面曲率を形成する光学部品です。その真価は、極めて高い表面精度(λ/40 RMS未満)を実現していることにあり、特に厳しい画質要件が求められる用途に適しています。

主な特徴
  • Extremely high surface accuracy
    Extremely high surface accuracy

    Up to λ/40 RMS (~15 nm) or even higher.

  • Extremely low surface roughness and damage
    Extremely low surface roughness and damage

    Processes such as MRF and IBP can achieve ultra-smooth surfaces, avoiding scattering losses and eliminating subsurface damage that may affect the laser damage threshold.

  • Capable of machining large sizes and special materials
    Capable of machining large sizes and special materials

    For lenses with diameters ranging from tens of millimeters to several meters, or for hard and brittle materials that cannot be machined using molding (such as SiC), precision polishing is the only option.

  • Flexible customization
    Flexible customization

    Because it does not require expensive molds, precision polishing is ideal for small-batch, diverse prototyping and special customization needs.
